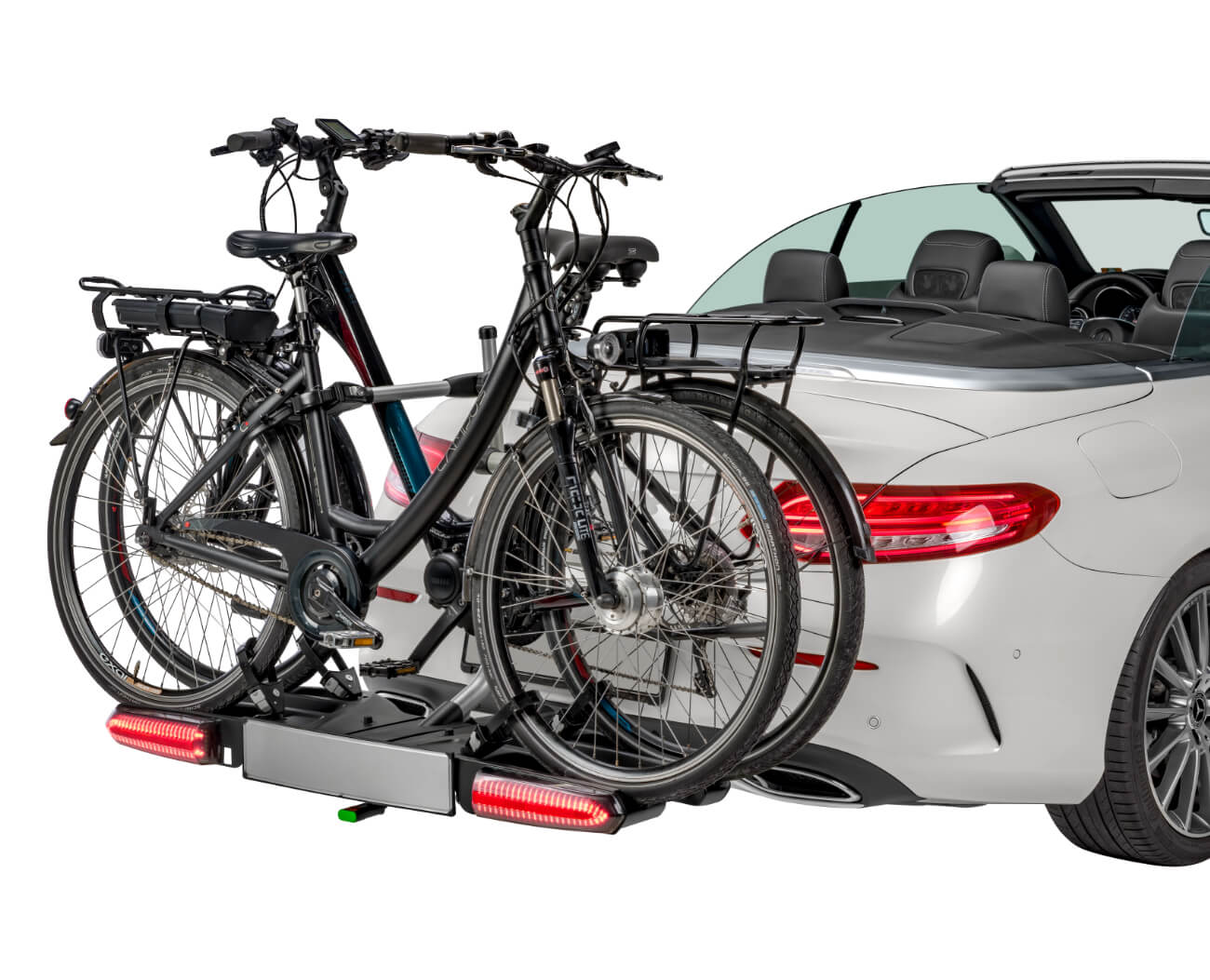

Towbar mounted bike rack - 2, 3 bikes - MFT System
Regular price:
product unavailable
add to wish list
Description
Available in stock.
Available in FIX 4 BIKE version
The rack is dedicated to passenger cars.
The trunk does not allow the tailgate to be opened in cars such as VW Caddy, Mercedes Citan, VW Multivan, Mercedes Vito, etc.
For VAN vehicles, we recommend the following trunk: Towbar mounted bicycle rack - 2, 3, 4 bikes, 90 degree opening - MFT System California Auto
Bike rack for electric bikes
- Citycrash tests according to DIN 75303
- Put it on, open it, drive away!

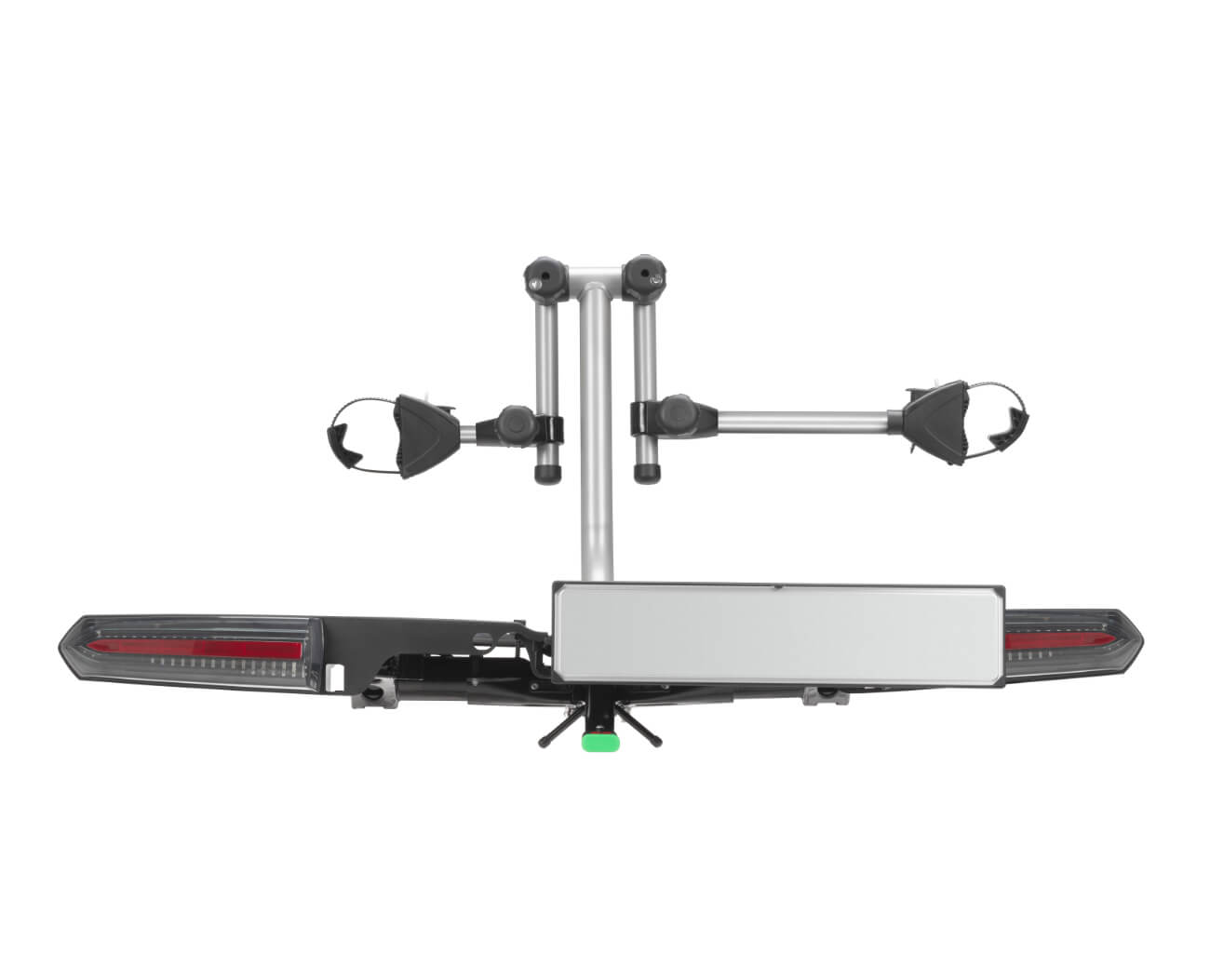

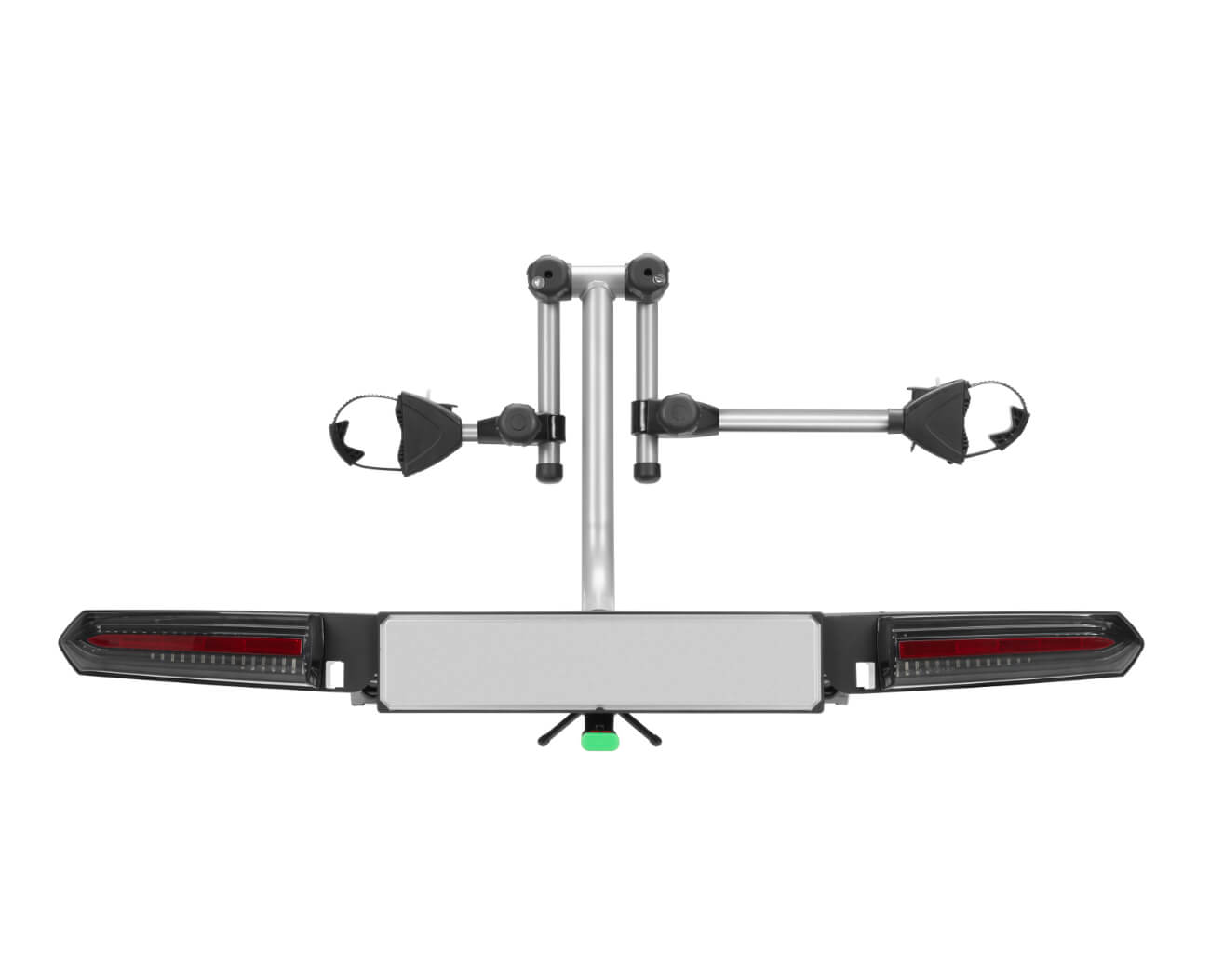

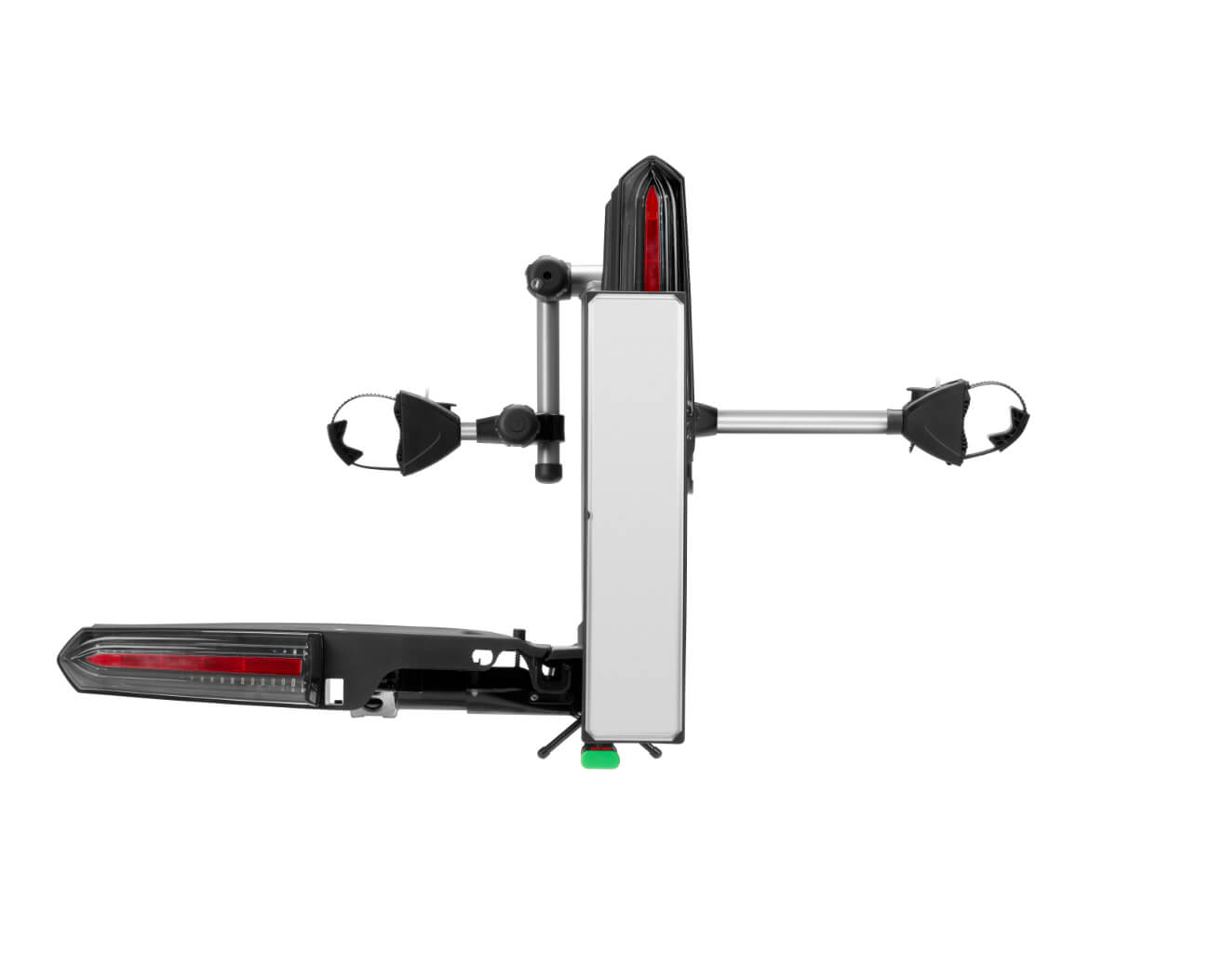

- Fully foldable for convenient handling, assembly and storage
- Innovative and patented* folding mechanism for quick and secure attachment (*DE 10 2010 064 598 BE)

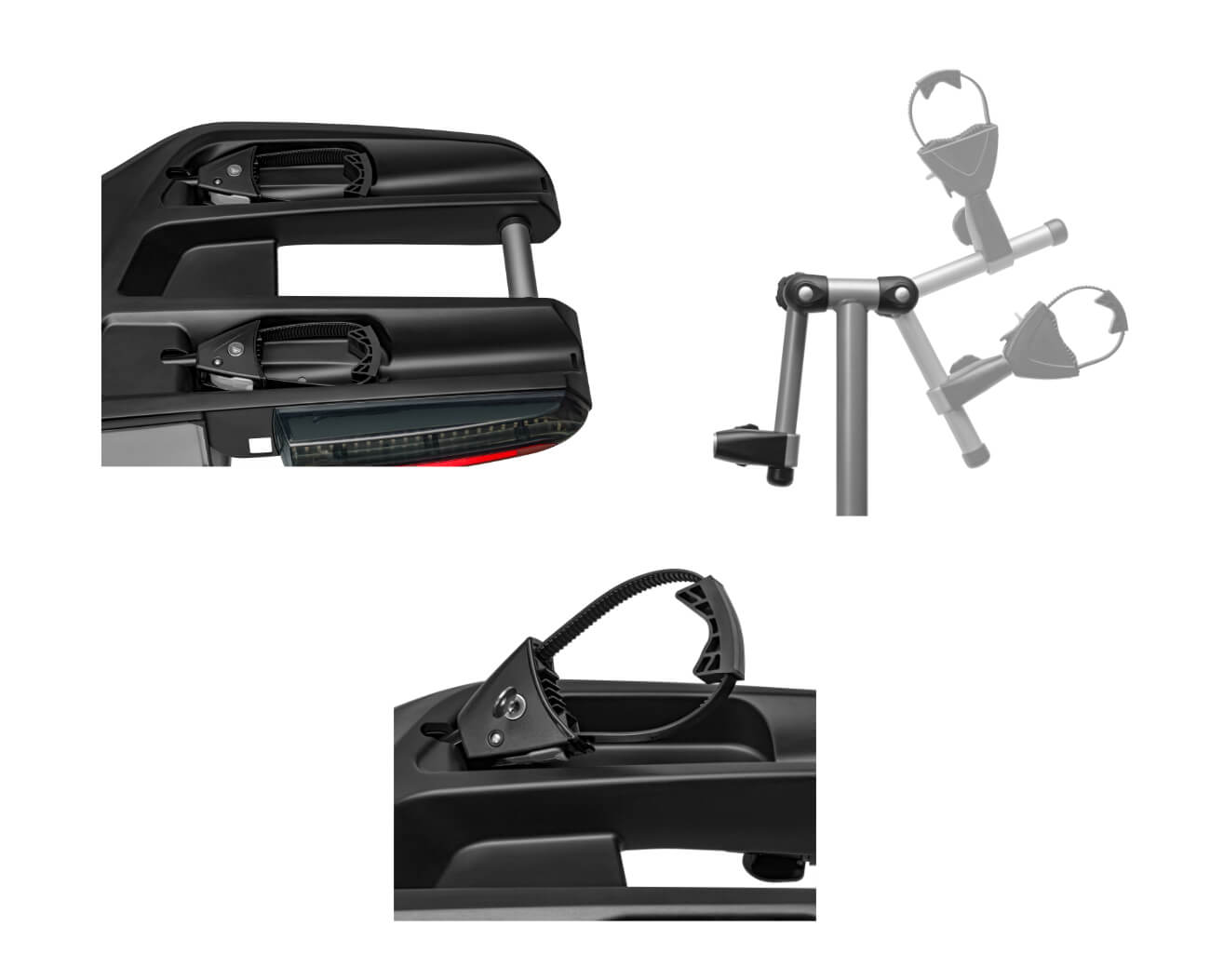

- 3-point locking of each bike on the bike rack (same key)
- Individual tensioning and automatic adjustment to the ball head (no pre-adjustment required)
- High-strength steel and aluminium connections in the area of the carrier elements for safe transport of e-bikes weighing up to 30 kg
- Modern, durable SMD LED lighting system integrated in a plastic cover that is resistant to UV radiation, heat and cold
- Folding mechanism with foot pedal allows easy access to the rack even when the rack is loaded with bikes
- Clean attachment and removal of the bike rack on the tow bar with bag

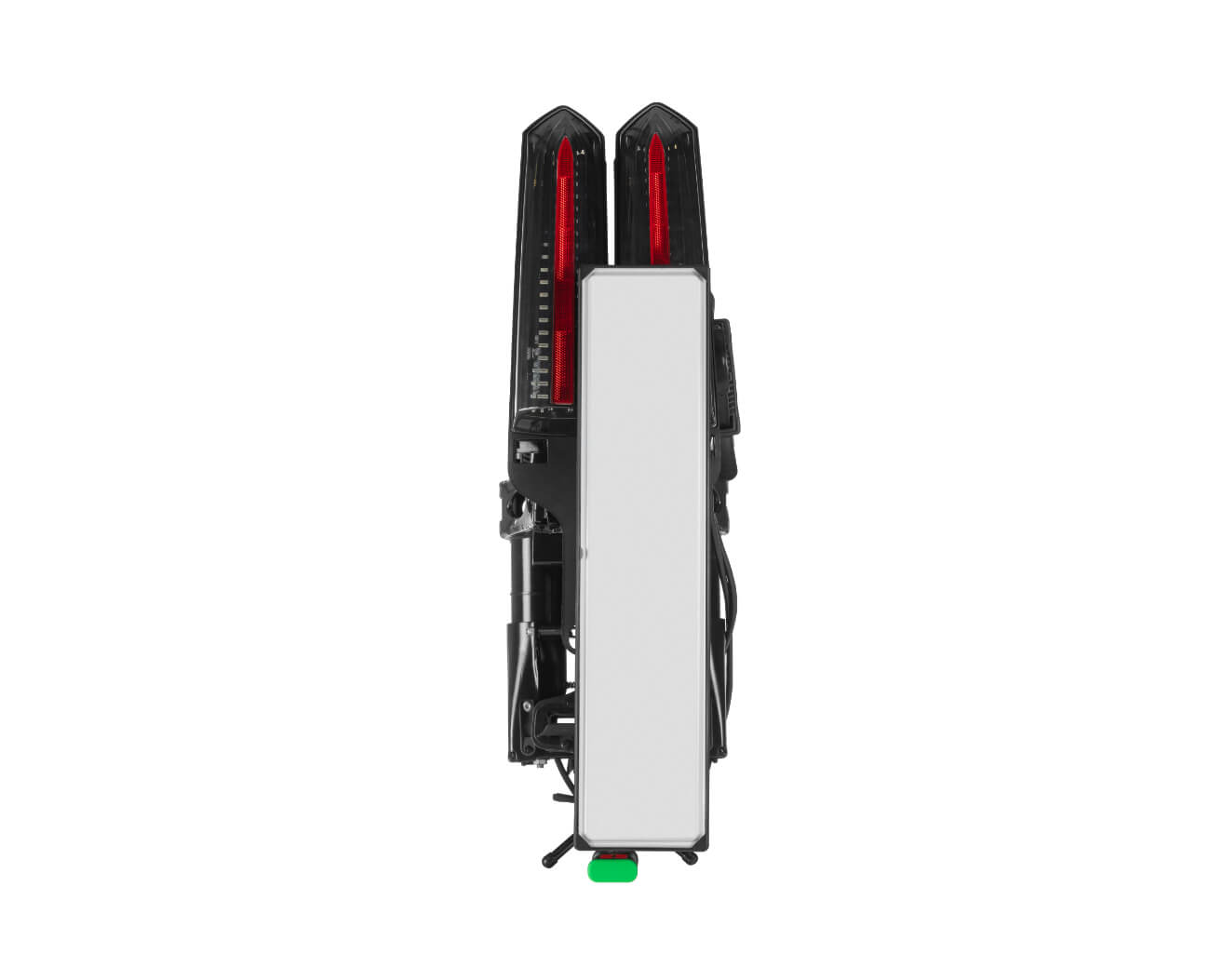

- Small storage size: 66 x 73 x 29 cm
- Built-in stand for easy parking
- Pre-assembled, no tools required

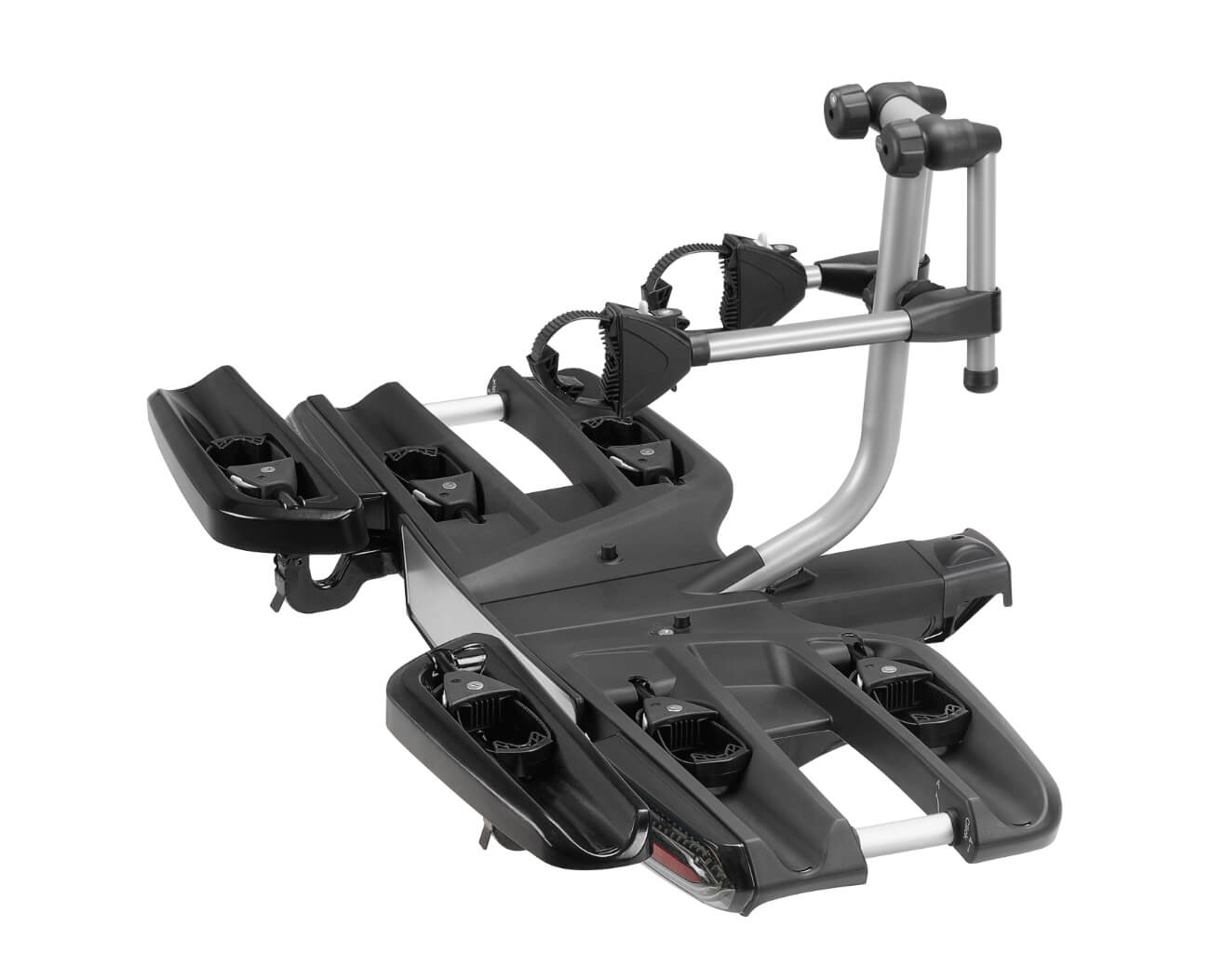

Expandable to 3 bikes. Also extended foldable by foldable wheel rails.
Specification
| Weight | 16.4 kg |
|---|---|
| Dimensions (length x width x height) | 63 × 130 × 64 cm |
| From self-weight tilt | +/- 5 percent |
| Max. number of bikes | 3 |
| Max. number of electric bikes | 2 |
| Load capacity (kg) | 60 |
| Distance of bike rails (cm) | 23 |
| Suitable for frame diameter (cm) | 2.5 – 8 / 8+ |
| Lockable trunk on vehicle | Yes |
| Bikes can be attached to the rack | Yes |
| Foldable, also loadable | Yes |
| Lighting System | SMD LED |
| Plug-in connection | 13-pin |
| Introduction | EU type approval |
| Meets city crash standards | Yes |
| Warranty | 3 years |
>
Will my bike fit on the rack?
Wheelbase
Zasadniczo decydujący jest rozstaw osi (odległość between the axles) of the bike. The bike rack has a total width of 1.30 m. If its wheelbase is no shorter than 1.10 m and does not exceed the aforementioned 1.30 m, the bike will be safely placed on the rack platform.
By the way: Really VERY large bikes have a wheelbase of 1.25-1.27 m. We have never seen anything larger on the "normal market" at all our trade fairs.
The bike rack was developed especially for e-bikes. Due to, for example, the centrally mounted engine, special suspension or the location of the battery, the wheelbase of these bikes is often significantly larger than that of "normal" bikes. In the version for 2 bikes, we have therefore focused on e-bikes, i.e. a wheelbase from 1.10 m. A bike with a wheelbase of less than 1.10 m can of course still be transported using the 3rd extension. The extension rails are movable, so they can be individually adjusted to a smaller bike.
Length of tire strips (40 or 50 cm?)
Unfortunately, it is not possible to give a general answer to the question of which tire stripes are right for you. In combination, 3 factors play an important role here: wheelbase, wheel size and tire width. Depending on the combination, it is necessary to switch to long tire stripes (50 cm).
You may find yourself in one of the following combinations to make your decision a little easier. Basically, you can't go wrong by switching to long tire stripes!
Standard tire straps (40cm) worked with:
- E-mountain bike: 1.12cm wheelbase, 27.5" wheel size, 2.60" tire width
- City/trekking electric bike: 1.14m wheelbase, 28" wheel size, 1.75" tire width
Long tire straps (50 cm) have been replaced with:
- Mountain bike: wheelbase 1.18 m, wheel size 27.5", tire width 2.35"
- Mountain bike: wheelbase 1.24m, wheel size 27.5", tire width 2.35"
- Mountain bike: wheelbase 1.20m, wheel size 27.5", tire width 2.60"
In all 3 modified variants there was still more than enough tire tape, so even larger models are no problem.
Ratchet strap length to frame (35 or 50 cm?)
Please note that even in electric bikes with a battery Intube (integrated) usually there are small diameter frame elements to which you can attach your bike with our standard length (35 cm) ratchet strap. For example in the seatpost area.
Standard frame tape works up to a frame diameter of 80 mm. Additionally (80+ mm) must be converted to a long ratchet strap (50 cm).
